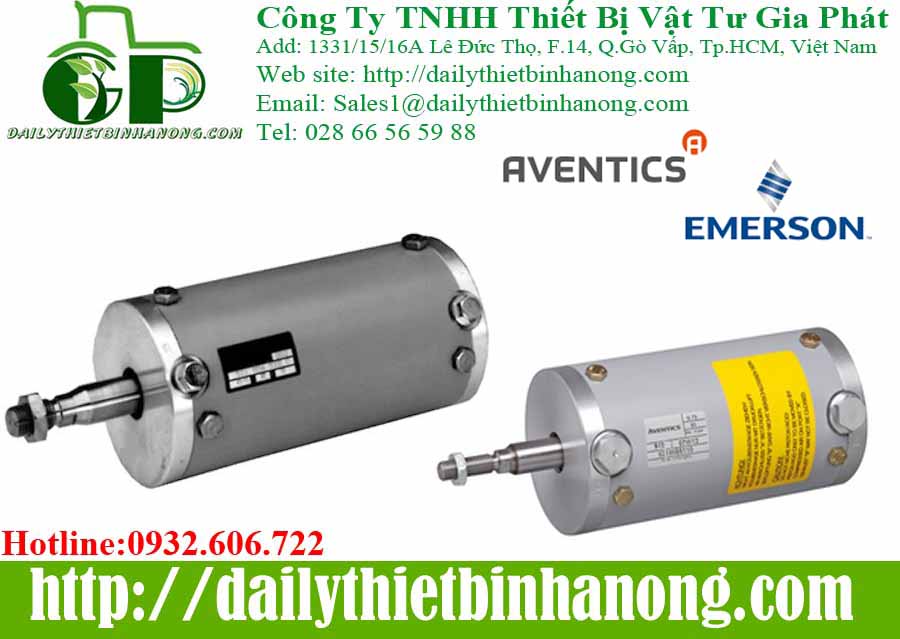

Xi lanh Aventics 5218585120 DIAPHRAGM-TYPE CYL RDC-SA-0115-009
Specifications
Piston Ø : 115 mm
Stroke: 95 mm
Functional principle: Single-acting, retracted without pressure
Pressure for determining piston forces: 6,3 bar
Extracting piston force: 6543 N
Min. ambient temperature: -25 °C
Max. ambient temperature: 80 °C
Working pressure min.: 0.035 bar
Working pressure max: 8 bar
Ports: G 3/8
Piston rod thread: M16x1,5
Weight: 5.8 kg
Weight 0 mm stroke" 5.8 kg
Stroke max.: 95 mm
Medium: Compressed air
Min. medium temperature: -25 °C
Max. medium temperature: 80 °C
Max. particle size: 5 µm
Oil content of compressed air min.: 0 mg/m³
Oil content of compressed air max.: 1 mg/m³
Piston rod: Stainless Steel
Piston material: Aluminum
Seal material: Acrylonitrile butadiene rubber
Material, front cover: Aluminum
Cylinder tube: Steel
